Service Parts List
Item #
Product
Part #
Description
Model
Remark
1
2016121A
1/2 HP EON ECM Motor
iFLH-140000 iFLH-160000
2
2018341A
3/4 HP EON ECM Motor
iFLH-180000
3
4803BK
3/4 HP Motor Bracket (Arm)
iFLH-140000 iFLH-160000
4
6884BK
1/2 HP Motor Bracket (Arm)
iFLH-180000
5
TR4976
Motor Bracket (Arm Bend)
iFLH-140000 iFLH-160000 iFLH-180000
6-1
1014004A
Heat Exchanger
iFLH-140000
6-2
1016004A
Heat Exchanger
iFLH-160000
6-3
1018004A
Heat Exchanger
iFLH-180000
7-1
1014004B
Heat Exchanger
iFLH-140000
7-2
1016004B
Heat Exchanger
iFLH-160000
7-3
1018004B
Heat Exchanger
iFLH-180000
8-1
1014004B
Heat Exchanger
iFLH-140000
8-2
1016004B
Heat Exchanger
iFLH-160000
8-3
1018004B
Heat Exchanger
iFLH-180000
9
30WSC01A
Sensor Clip
iFLH-140000 iFLH-160000 iFLH-180000
10
30CBA0SC
SC Main CTL Board / A
iFLH-140000 iFLH-160000 iFLH-180000
11
30CBA1SC
SC Main CTL Board / A1
iFLH-140000 iFLH-160000 iFLH-180000
12
30CBA2SC
SC Main CTL Board / A2
iFLH-140000 iFLH-160000 iFLH-180000
13
30CBC0SZ
W Main CTL Board / C
iFLH-140000 iFLH-160000 iFLH-180000
14
30CBC0DZ
DZ Main CTL Board / C
iFLH-16000D iFLH-18000D
15
30CBC0QZ
QZ Main CTL Board / C
iFLH-18000Q
16
30CBE0SZ
W Main CTL Board / E
iFLH-14000W iFLH-16000W iFLH-18000W
17
4024201B
Transformer 20VA
iFLH-140000 iFLH-160000 iFLH-180000
18
4024401B
Transformer 40VA
iFLH-16000D iFLH-18000D
19
4024751B
Transformer 75VA
iFLH-18000Q
20
50MCTL1A
Motor CTL Cable - 14”,16”
iFLH-140000 iFLH-160000
21
50MCTL1A
Motor CTL Cable - 18”
iFLH-180000
22
50121EON
Motor Power Cable - 14”,16”
iFLH-140000 iFLH-160000
23
50121EON
Motor Power Cable - 18”
iFLH-180000
24
30ETS00A
SW / RW / SA / AC Harness
iFLH-140000 iFLH-160000 iFLH-180000
PCB E, A2

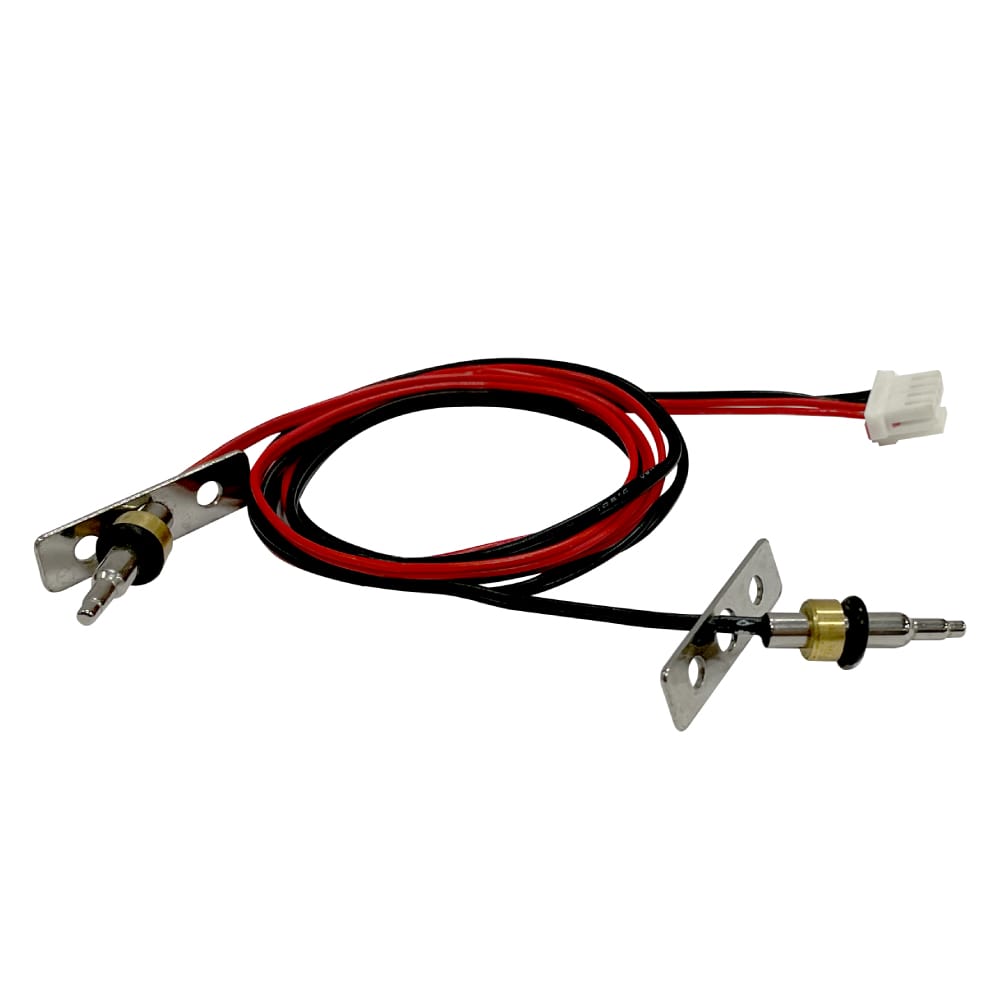

25
30ETS01A
SA / RW / SA / AC Harness
iFLH-140000 iFLH-160000 iFLH-180000
PCB C
26
30ETS01B
AC / DH / Hum Harness
iFLH-140000 iFLH-160000 iFLH-180000
PCB C
27
30ETS01B
Air Supply Temp. Sensor
iFLH-140000 iFLH-160000 iFLH-180000
28
30ETS01A
Hum / DH / RA Harness
iFLH-140000 iFLH-160000 iFLH-180000
PCB E, A2

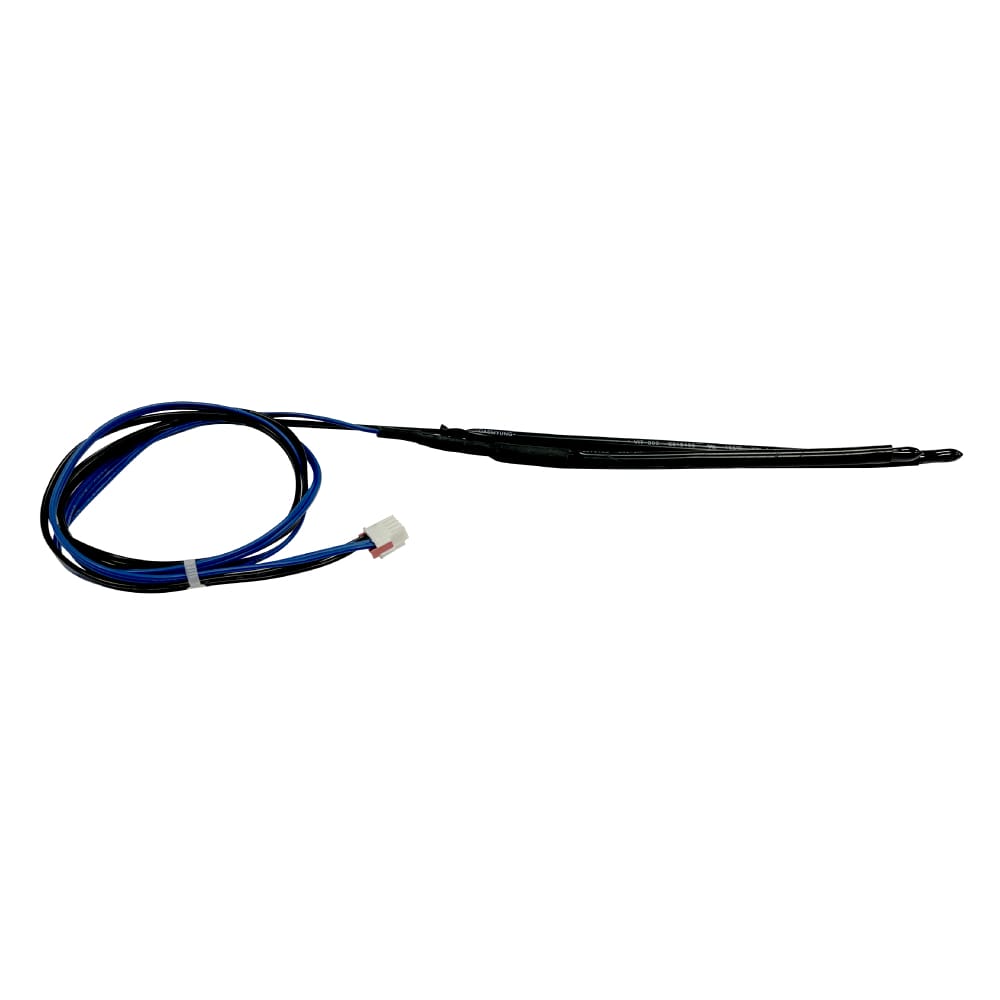

29
30ATSR1A
A Control Board Supply Return Air sensor
iFLH-140000 iFLH-160000 iFLH-180000
A PCB

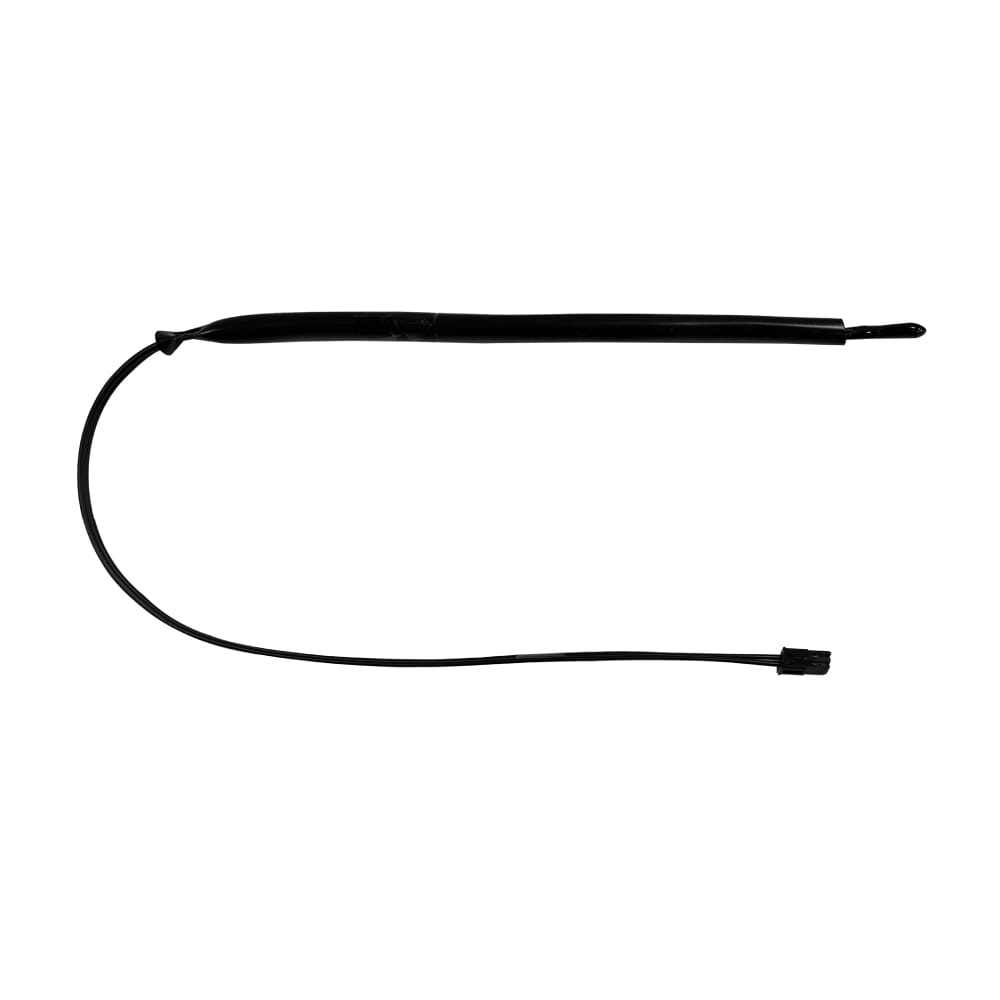

30
30ATR01B
Air Return Temp. Sensor
iFLH-140000 iFLH-160000 iFLH-180000
A PCB

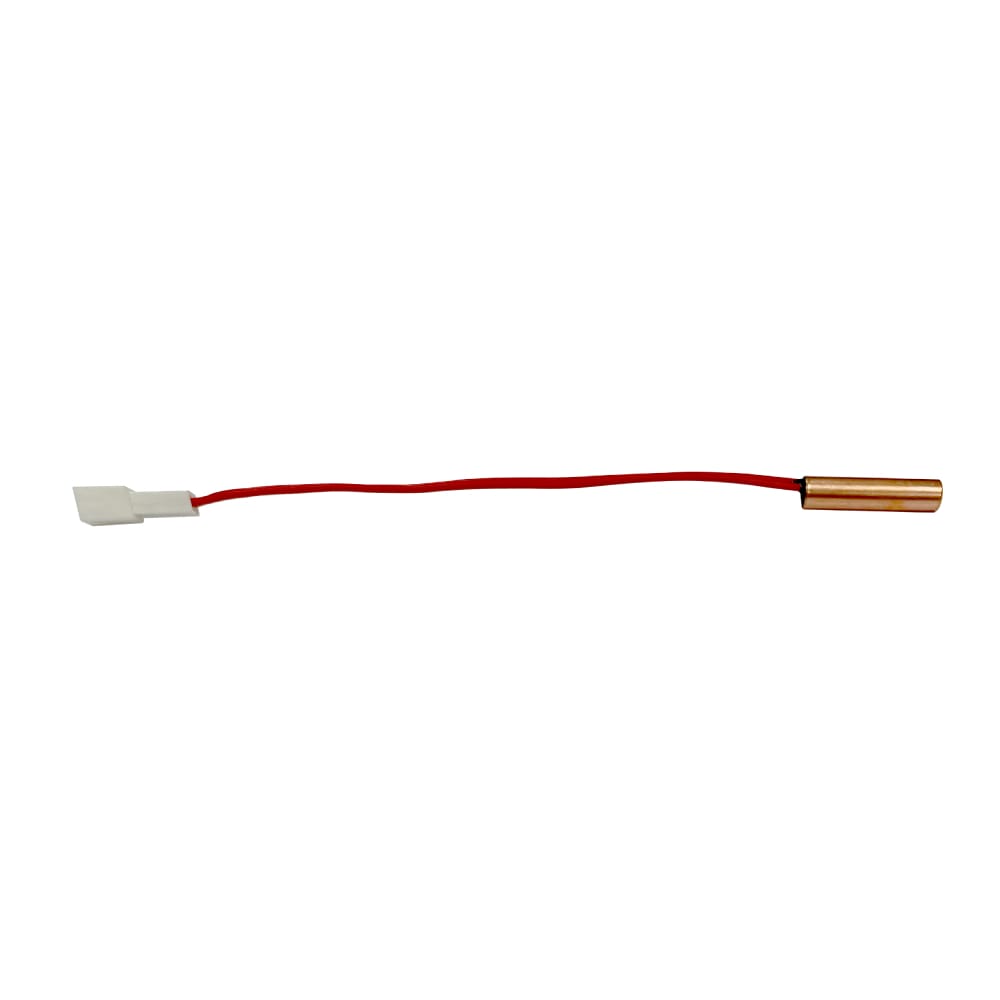

31
30WTS01B
A1 Control Board Supply Water Temp. Sensor
iFLH-140000 iFLH-160000 iFLH-180000
A PCB
32
30WTR01B
A Control Board Return Water Temp. Sensor
iFLH-140000 iFLH-160000 iFLH-180000
A PCB
33
30WTR01C
Water Return Temp. Sensor
iFLH-140000 iFLH-160000 iFLH-180000
34
30WTS01B
Water Supply Temp. Sensor
iFLH-140000 iFLH-160000 iFLH-180000

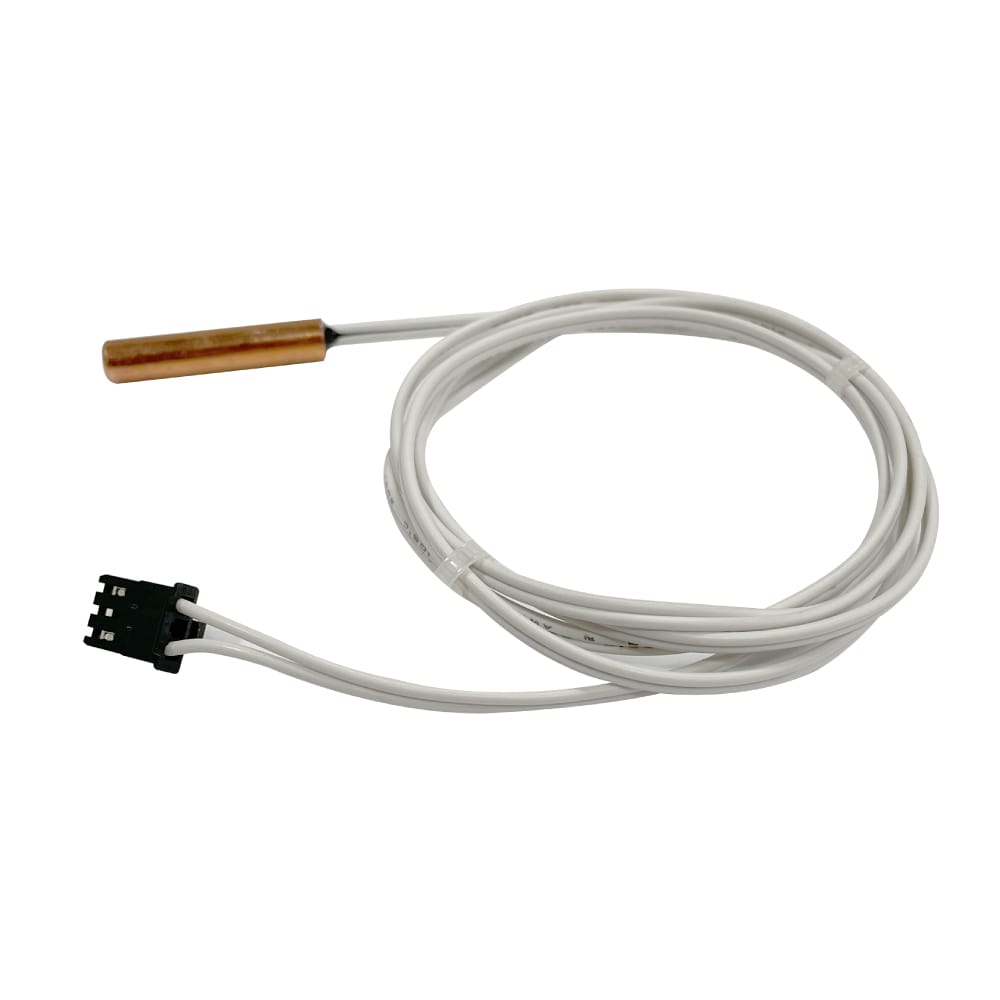

35
30ETS02B
DEH/ Eva. Temp. Sensor
iFLH-14000W iFLH-16000W iFLH-18000W iFLH-18000D iFLH-18000Q
Heat Pump Application
36
30HUS01B
Humidity Sensor
iFLH-140000 iFLH-160000 iFLH-180000
37
30OTS001A
Outdoor Sensor
iFLH-140000 iFLH-160000 iFLH-180000

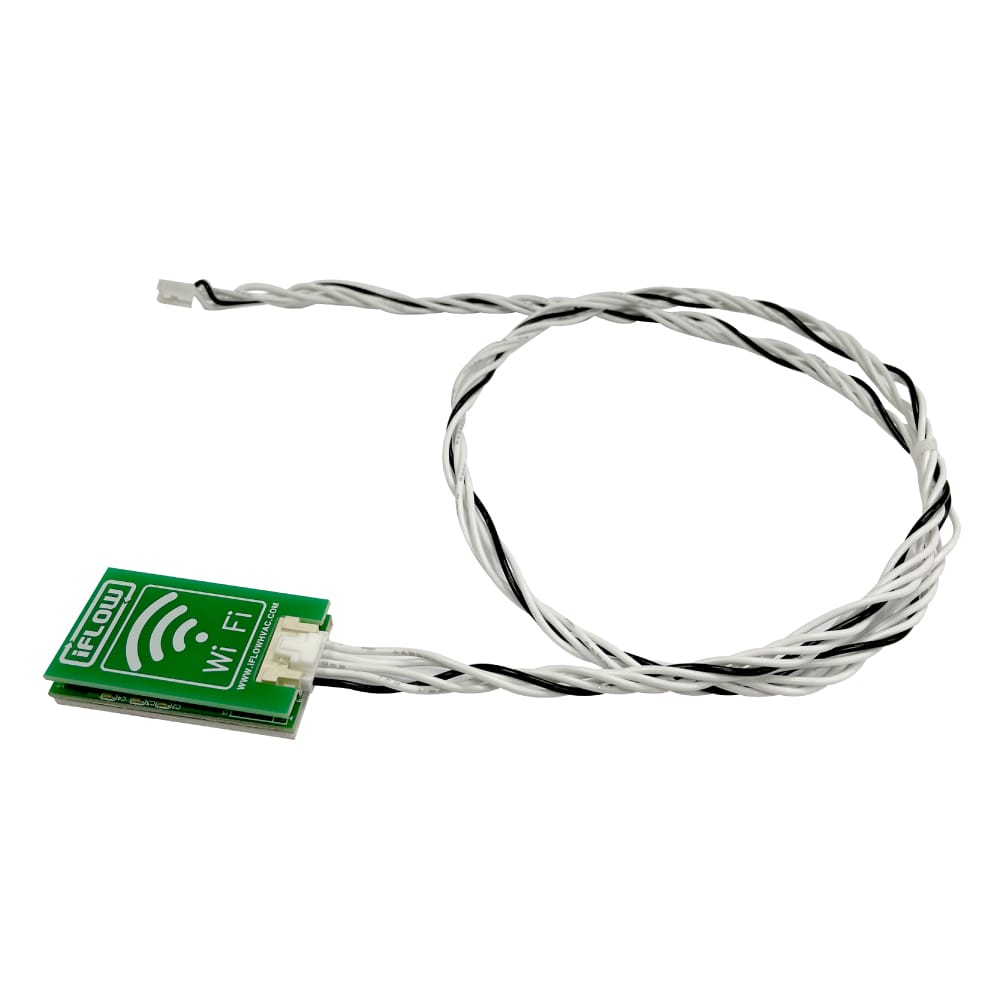

38
30WFA00A
Wifi Module
iFLH-14000W iFLH-16000W iFLH-18000W iFLH-18000D iFLH-18000Q
39
50PCT0B
Pump Control Harness
A2 PCB

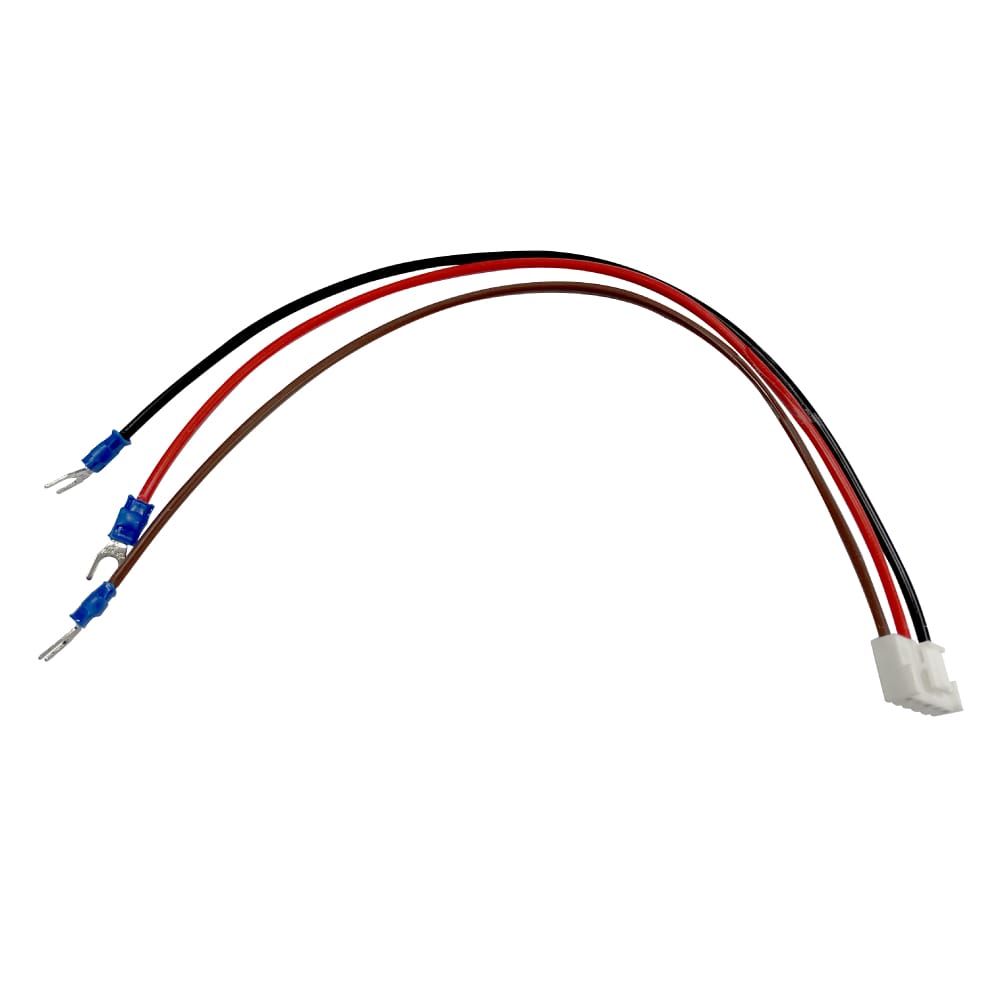

40
50PCT0A
Pump Control Harness
C PCB

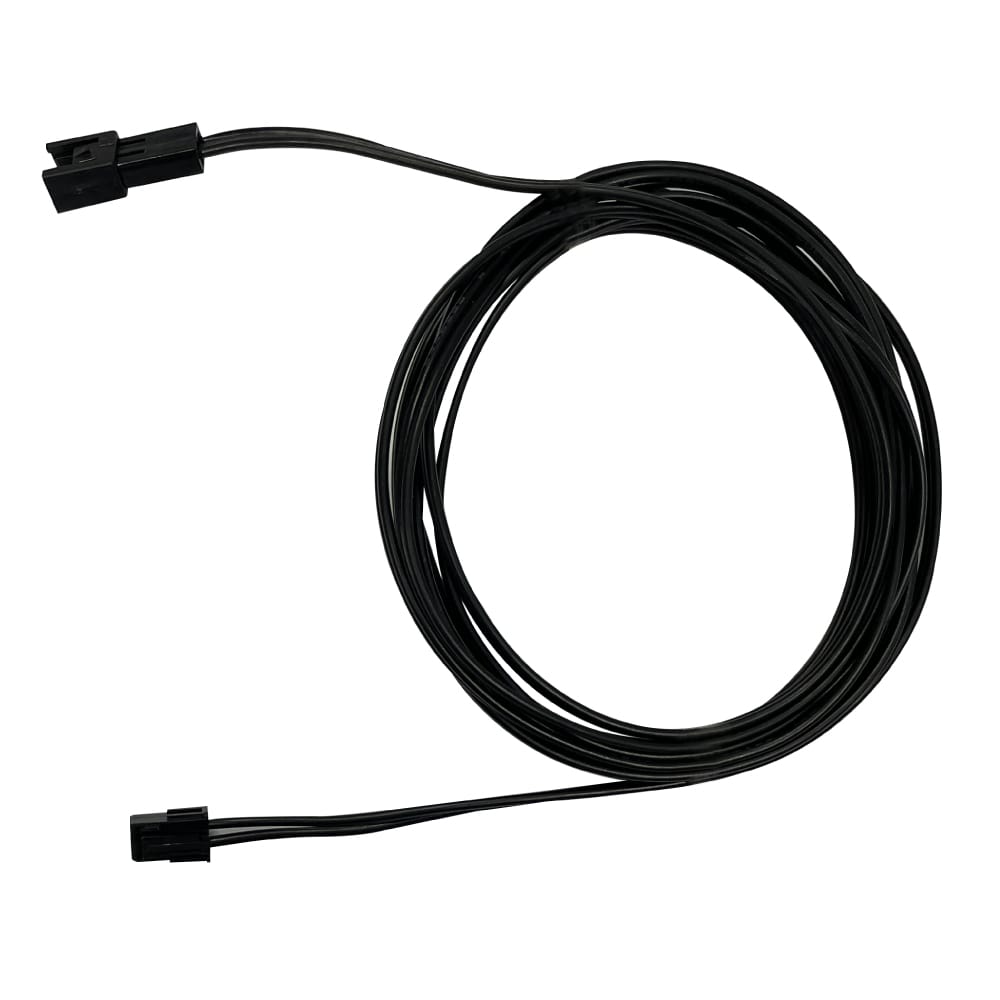

41
30ATRE1A
A, A1 Control Board AC EVA Sensor
A, A1 PCB
42
30ETS01A
A, A1 Control Board AC EVA Sensor
A1 PCB
43

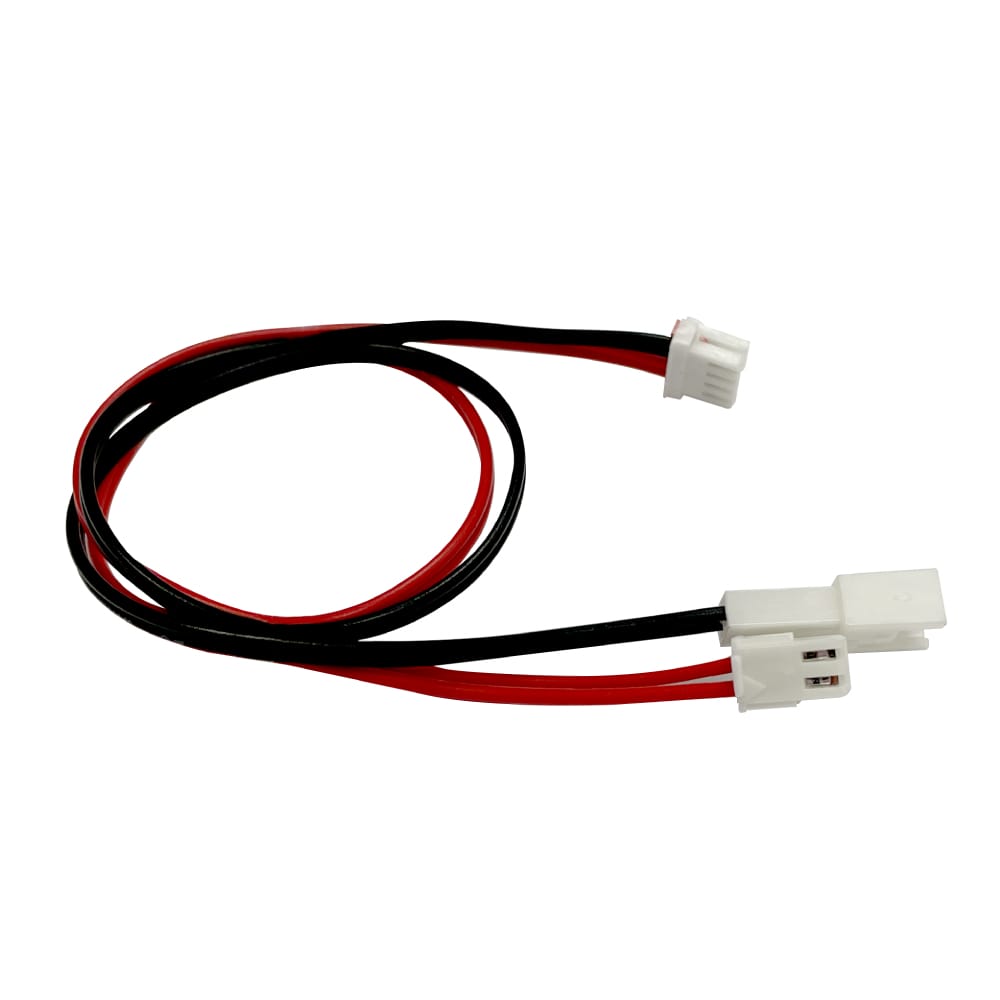

30WTSR1A
A Control Board Supply Air Temp. Sensor Harness
A1 PCB
44
